R410A: It is a new type of environmentally friendly refrigerant that does not destroy the ozone layer. Its working pressure is about 1.6 times that of ordinary R22 air conditioners, and its cooling (warming) efficiency is high. R410A new refrigerant is composed of two quasi-azeotropic mixtures R32 and R125 with 50% each. At the same time, because it does not contain chlorine, it will not react with ozone, that is, it will not destroy the ozone layer.
In addition, the performance of air conditioners using new refrigerants will also be improved to a certain extent. R410A was once recognized internationally as a suitable refrigerant to replace R22, and has been popularized in Europe, America, Japan and other countries. Global trends and prospects of R410A replacement in major international markets, usage status and entry into international markets.
With the enhancement of people's awareness of environmental protection, people's requirements for product environmental protection are getting higher and higher. Compressor refrigerants range from: R12 R22, R134a, R407C to R410A, people's efforts to environmental protection have not changed. R410A is not the end of the development of environmentally friendly refrigerants, but a new starting point. R410A does not damage the ozone layer, but has a high greenhouse effect (GWP is 1730). People began to start with the greenhouse effect, and launched more environmentally friendly and efficient refrigerant compressors. R32 has a higher greenhouse effect (GWP is 670) and R290 (GWP is 3.3).
Recently, H.Stars fully launched the 20STB series of chillers using a new generation of environmentally friendly refrigerants to the Chinese market. The unit adopts R410a new environmentally friendly refrigerant, which has zero damage to the atmospheric ozone layer and large latent heat of evaporation, which can increase the energy efficiency ratio of the air conditioner by about 10%, and has high cooling and heating efficiency.
R410A refrigerant water-cooled chiller
20STB series water-cooled chillers are manufactured with famous brand compressors and electronic control components, equipped with high-efficiency shell-and-tube condensers and evaporators. The units are controlled by microcomputers, equipped with various protection functions, and have high reliability. great effect. Designed for comfortable air conditioning, it can be used in parallel/module of multiple machines, and is suitable for various commercial buildings such as hotels, shopping malls, and office buildings. Contains WO open type and WC type box type. Modular combinations can be made according to customer needs.
Refrigerant: R410A
Cooling range: 150kW-300kW
R410A refrigerant air-cooled chiller
20STB series air-cooled chillers are manufactured with famous brand compressors and electronic control components, and are equipped with high-efficiency fin condensers and shell-and-tube evaporators. The unit is controlled by microcomputer, equipped with a variety of protection functions, can accurately control the operating conditions, high reliability, and can play a large role in actual working conditions. It is designed for comfortable air conditioning, cooling applications, and is suitable for hotels, shopping malls, office buildings, etc. Class commercial buildings. Modular combinations can be made according to customer needs.
Refrigerant: R410A
Cooling range: 130kW-260kW
| The main components | |

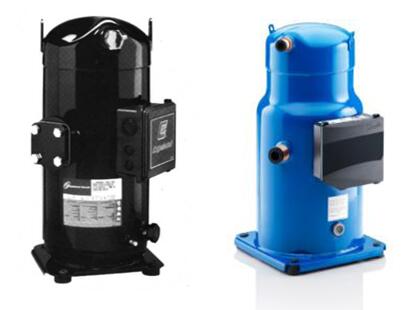

compressor - The unit adopts the brand compressor and the middle bearing cover design to achieve high energy efficiency and low sound level. - Quieter and more efficient operation, "no contact and no wear" scroll design reduces friction. |  |

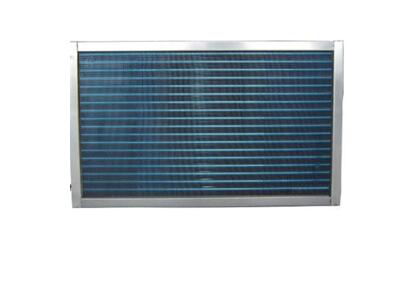

Fin Heat Exchanger - The use of hydrophilic aluminum foil reduces the adhesion of water on the aluminum foil and greatly improves the heat exchange efficiency. - Copper tube sleeve aluminum fin design, uniform wind speed. - Reasonable arrangement of copper pipes, "V" type installation, improve heat exchange efficiency and reduce fan noise. - The copper tube and the aluminum fins are tightly mechanically connected, with high performance and stable heat exchange. Independent design and production, strict quality control. It is configured according to the place of use and the process to ensure that the heat transfer coefficient meets the design requirements. |  |

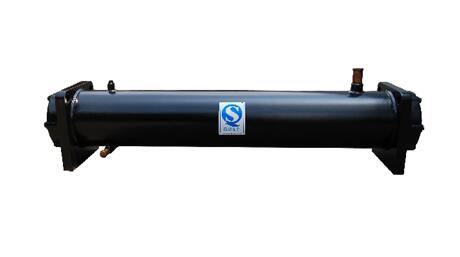

Shell and Tube Heat Exchanger - The copper tube of the evaporator adopts 1.1mm thick copper heat exchange tube, which ensures that all products meet the high requirements of high efficiency, energy saving, safety, strong anti-pollution ability and durability. - The heat exchange tubes of different materials can be selected according to the customer's use conditions and water quality factors, and the fouling coefficient can also be increased to enhance the heat exchange efficiency to ensure the high efficiency, energy saving and service life of the unit. - Independent design and production, strict quality control. It is configured according to the place of use and the process to ensure that the heat transfer coefficient meets the design requirements. |  |
 | |

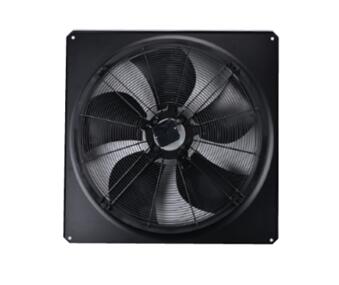

fan - Dedicated low energy consumption motor, patented fan nozzle, improve air flow and reduce noise. - Practice has proved that our fans operate stably and have a long service life. - Motor waterproof and dustproof grade: IP54, insulation grade: F. - Each fan is an independent split chamber. |  |
