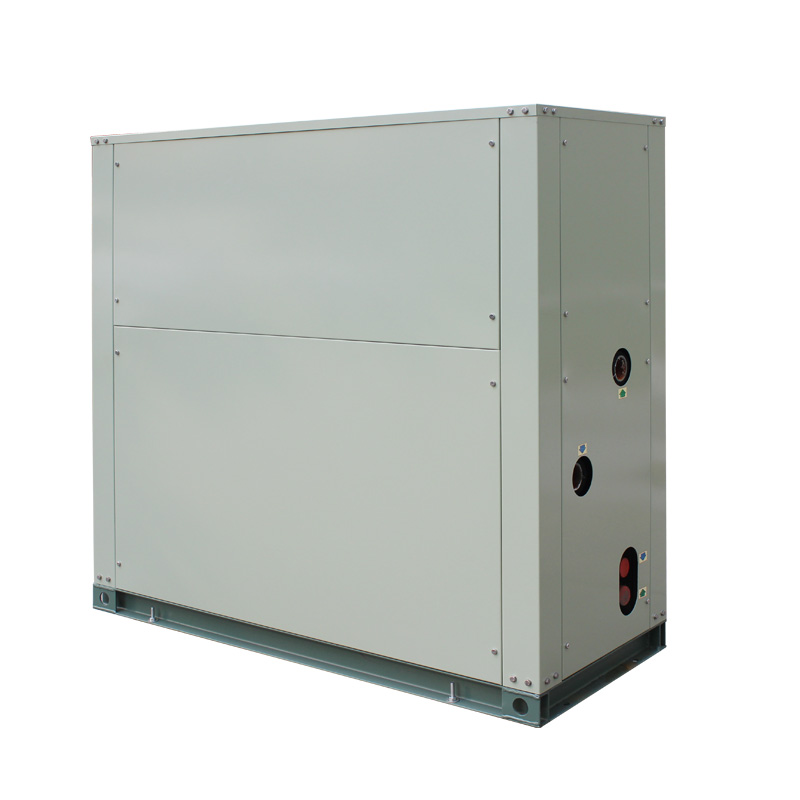

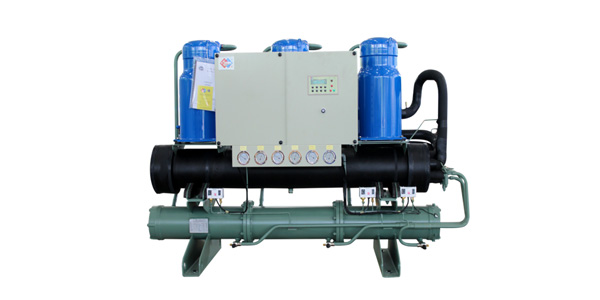

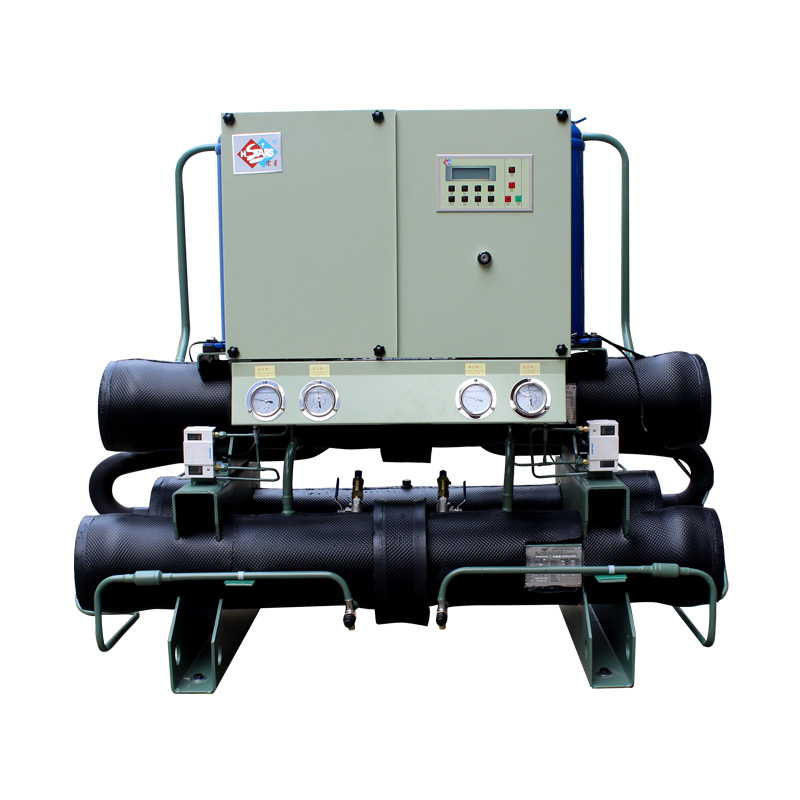

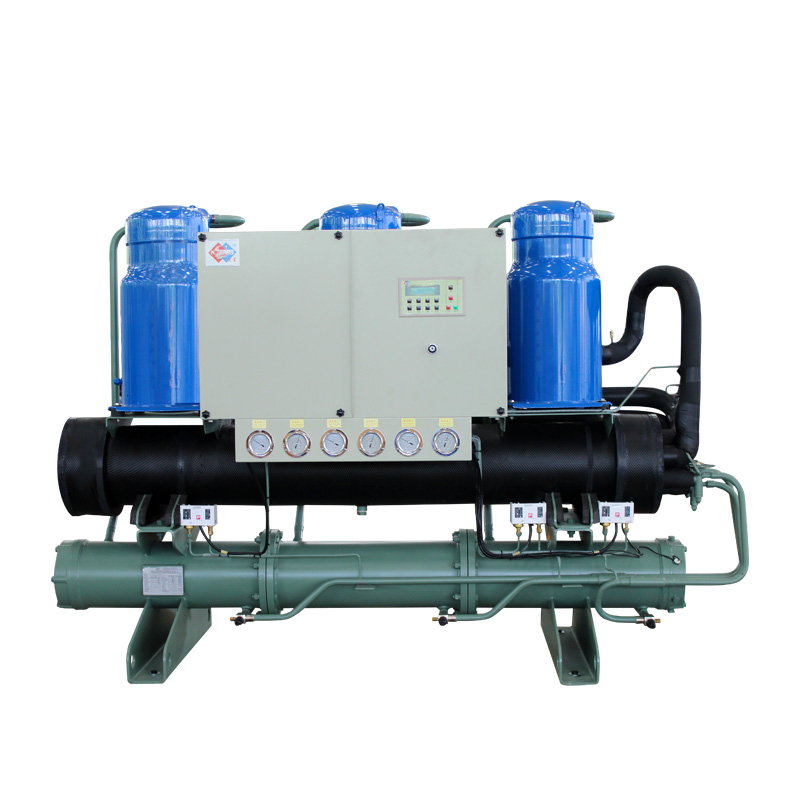

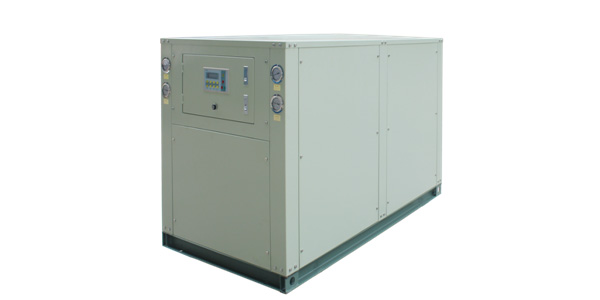

Scroll water source heat pump unit_H.Stars (Guangzhou)Refrigerating Equipment Group Ltd

Scroll water source heat pump unit agricultural greenhouse constant temperature project saves 400,000 yuan per year

High energy efficiency and energy saving of scroll water source heat pump unit

The energy saving effect is good, and the overall cost is reduced by 60%

The vortex water source heat pump unit not only saves a lot of energy, but also can meet the requirements of heating and cooling with one set of equipment. It can not only meet the needs of most markets, but also reduce the initial investment of equipment. Its total investment is only 60% of the traditional air conditioning system.

The scroll water source heat pump unit is protected by multiple measures and operates reliably

Multiple measures to protect, reliable operation

The unit has 7 kinds of safety protection measures to ensure the normal operation of the unit.

The unit is available with single and double loop designs to meet the different choices of customers. When a single compressor of a dual-circuit configuration unit fails, the other compressor can still run normally without affecting the use of customers.

The unit has passed the safety inspection before leaving the factory.

The performance of the unit conforms to the enterprise standard.

Scroll water source heat pump unit is intelligently controlled and easy to manage

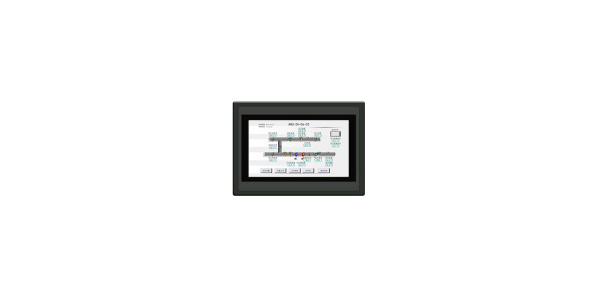

Intelligent control

The controller adopts a highly integrated man-machine interface control center, which improves the anti-interference ability of the system.

The appearance is made of plastic shell, which is easy to install.

The front and rear panels exchange data through 485 communication, and the entire system can be installed in one piece or separately.

Optional Siemens PLC controller to realize ModBus RTU, TCP or S7 communication.

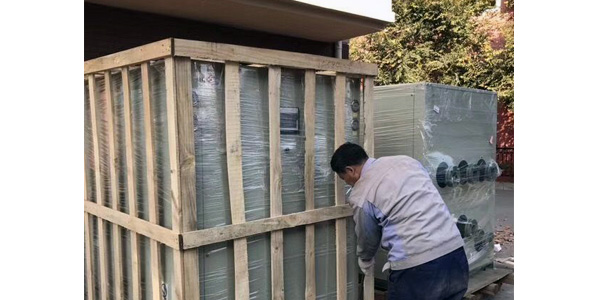

Easy to install

The unit has been filled with refrigerant and lubricating oil before leaving the factory, and the customer only needs to connect the inlet and outlet pipes and power supply to run.

Product parameters

model	Cooling capacity	Heating capacity	open weight	box weight	Refrigerant
20STB-10WHS04	34kw	42kw	250kg	340kg	R22
20STB-15WHS04	50kw	62kw	330kg	420kg	R22
20STB-30WHS04	100kw	124kw	580kg	700kg	R22
20STB-40WHS04	120kw	145kw	730kg	860kg	R22
20STB-45WHS04	150kw	186kw	870kg	1000kg	R22
20STB-75WHD04	240kw	291kw	1380kg	1480kg	R410a
20STB-90WHD04	300kw	372kw	1730kg	1820kg	R410a
20STB-100WHD04	320kw	388kw	1780kg	1860kg	R410a
...
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
