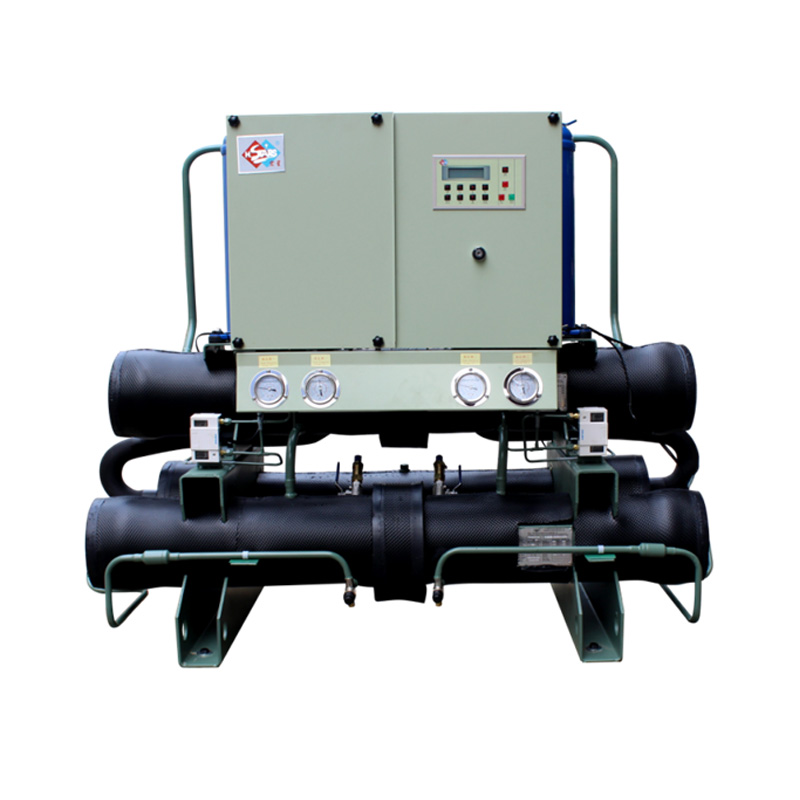

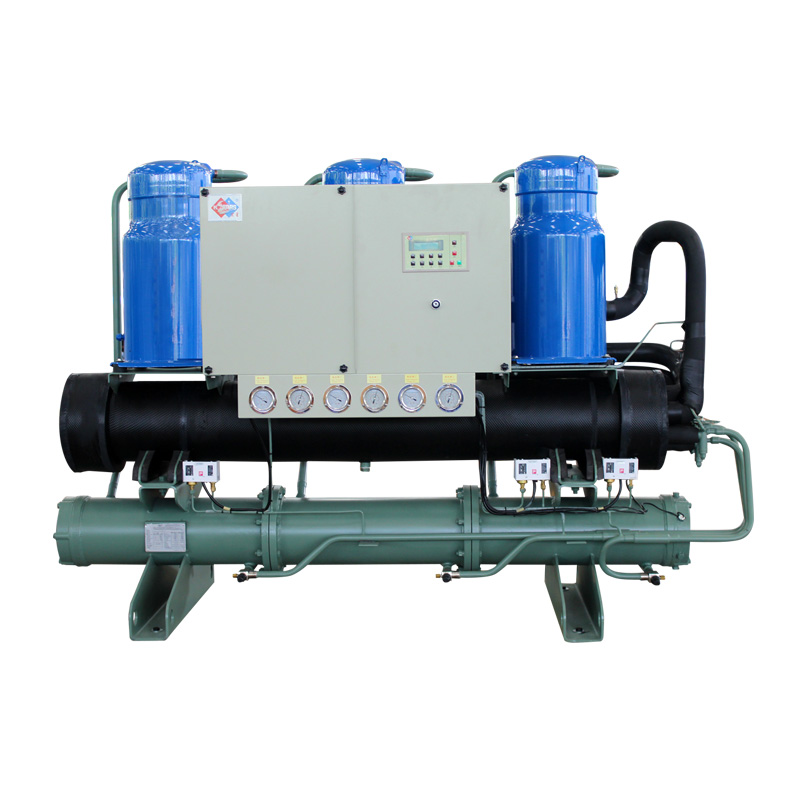

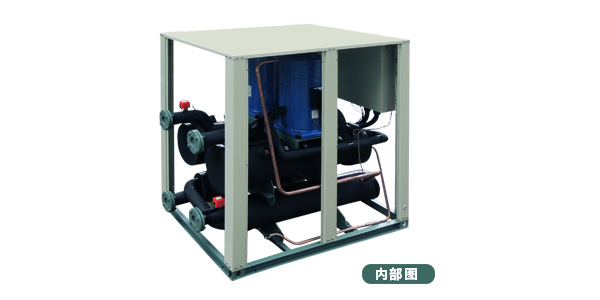

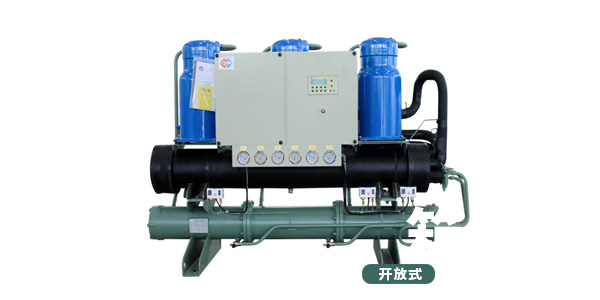

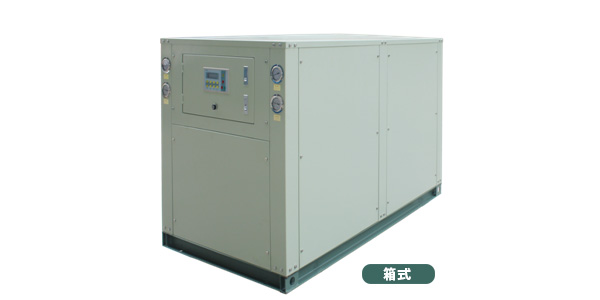

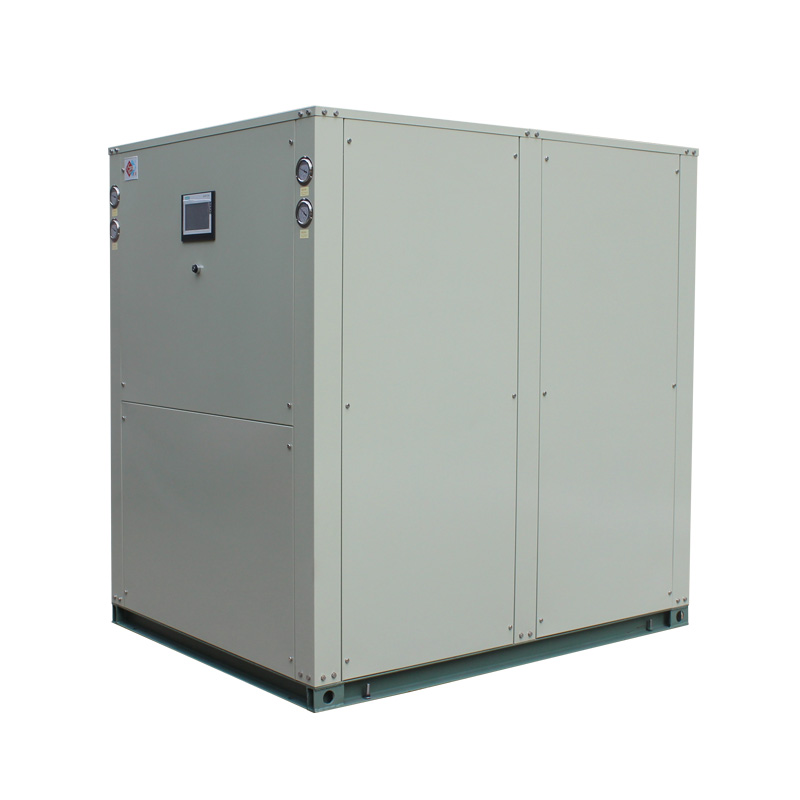

Sewage source heat pump unit_H.Stars (Guangzhou)Refrigerating Equipment Group Ltd

The initial investment of the sewage source heat pump unit is low, which reduces the overall cost of the whole year

New trend of clean energy for sewage source heat pump units

New trend of clean energy, in line with policy

In this field of clean and renewable energy utilization, sewage source heat pump technology successfully converts the heat wasted in urban sewage through heat pump technology to provide users with heating, cooling and domestic hot water.

The sewage source heat pump unit recovers the heat energy in the urban raw sewage, which not only develops a clean energy, but also reduces the discharge of urban waste heat and protects the environment.

The energy saving rate of sewage source heat pump unit is 30%~50%

Energy saving rate 30%~50%

The energy saving rate reaches 30%~50%, and no waste gas, waste and waste residue are discharged into the atmosphere, and the investment cost and operating cost of this technology are significantly lower than those of the traditional method.

Low initial investment and good economic benefits

Compared with the initial investment of traditional heating and cooling methods and soil source heat pump, the initial investment of sewage source heat pump is low, and the economic benefit is significant.

The sewage source heat pump unit has a wide range of applications and is well received by many users

Wide range of applications, praised by many user

Sewage source heat pump technology is widely used in bathing, resort hot spring pools, swimming pools, with the successful implementation of many projects.

There are 12 standard specifications for the unit, the heating capacity range is 30kw-200kw, and the hot water temperature range is 55℃-85℃. The unit can be equipped with heat recovery and cold recovery as required. The temperature of the heat recovery outlet water is 65°C, and the lower outlet temperature of the frozen water is 5°C. In addition to standard specifications, various non-standard products can also be customized according to user requirements.

Product parameters

model	Heating capacity	input power	open weight	box weight	Refrigerant
20STB-20WHDC4	75kw	15kw	250kg	340kg	R22
20STB-25WHDC4	91kw	17kw	330kg	420kg	R22
20STB-30WHDC4	117kw	23kw	580kg	700kg	R22
20STB-40WHDC4	158kw	31kw	730kg	860kg	R22
20STB-50WHDC4	200kw	39kw	870kg	1000kg	R22
…
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.

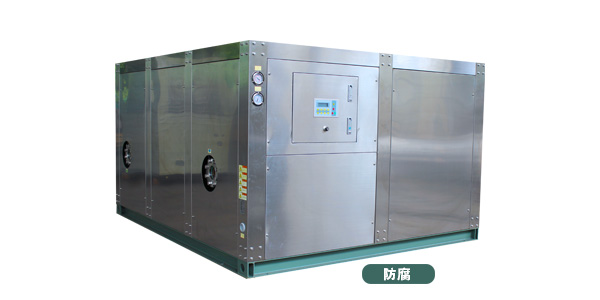

2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
