Combined cooling
- Outlet temperature
- 5~20℃/45-50℃
- Refrigerant
- R22/R134A
- Cooling range
- 350KW-950KW

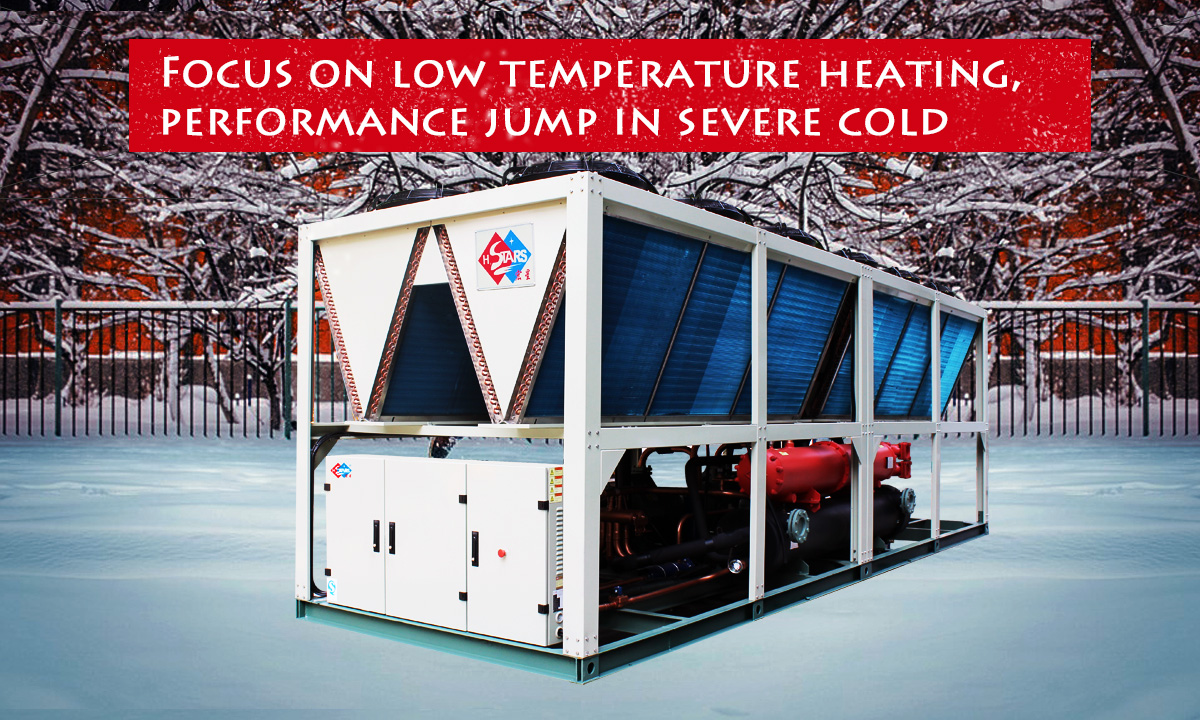

Not afraid of severe cold, -35℃~environmental stable heating
It is specially designed for extremely cold regions such as northeast and northwest, and can operate stably at an ambient temperature of -35 degrees.

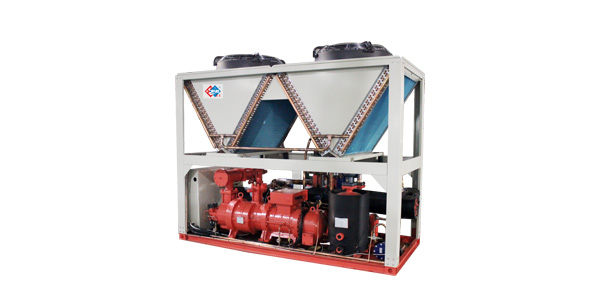

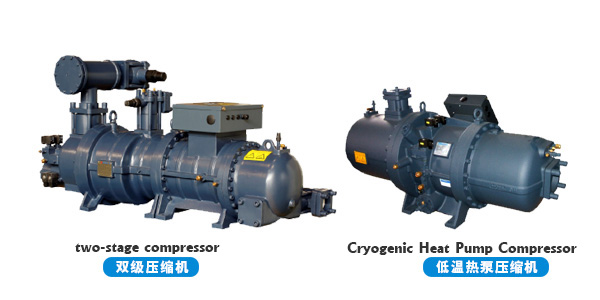

Screw-type single-machine two-stage compressor, true two-stage compression, strong inter-stage air supply to increase enthalpy, used in extremely cold regions.
With its own low temperature and strong heating technology, between -35 and 30 °C, the heating capacity will not be attenuated as the ambient temperature decreases.
The energy efficiency is 2.8, and the energy saving effect is obvious.
The overall energy efficiency for the entire heating season is 2.8.
Breaking the tradition, the combined application design of four-way valve, the unit can continue to work uninterrupted during the defrosting process, which greatly improves the actual operation efficiency.

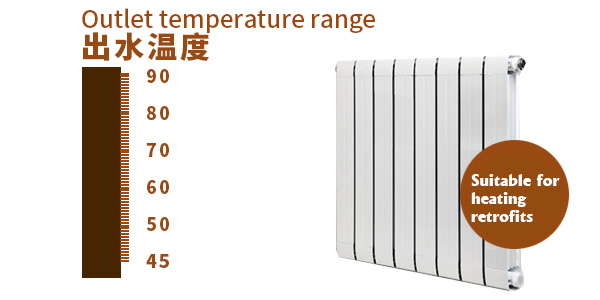

high water temperature
The outlet water temperature range is wide, and the outlet water temperature can be as high as 90 ℃.
It is suitable for the renovation of boiler heating sheet projects and the needs of special hot water and heating projects.

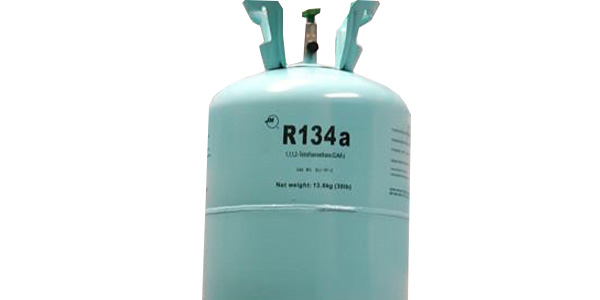

Environmentally friendly refrigerants for the benefit of mankind
Comply with AHRI550/590 standard, adopt HFC-134a Refrigerant, no damage to the ozone layer, and meet the relevant regulations of LEED green building standards.

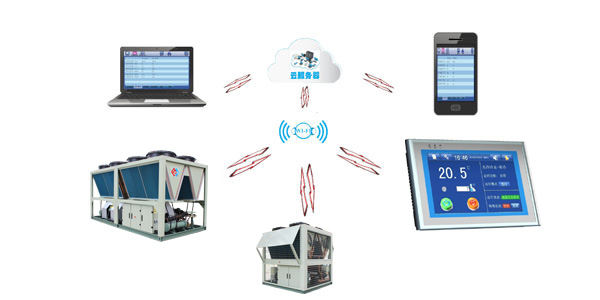

Cloud monitoring, more convenient management
The cloud can monitor the running status of the unit in real time, and monitor the unit anytime, anywhere.
Product parameters
| model | Cooling capacity | Heating capacity | weight | Refrigerant |
| 40STE-110CDHS4 | 113kw | 37kw | 1550kg | R22 |
| 40STE-160CDHS4 | 160kw | 110kw | 1960kg | R22 |
| 40STE-210CDHS4 | 214kw | 146kw | 2940kg | R22 |
| 40STE-240CDHS4 | 252kw | 170kw | 3120kg | R22 |
| 40STE-280CDHS4 | 297kw | 199kw | 3300kg | R22 |
| 40STE-310CDHS4 | 319kw | 215kw | 3480kg | R22 |
| 40STE-340CDHS4 | 347kw | 235kw | 3660kg | R22 |
| 40STE-110CDHS4 | 369kw | 6000kg | R134a | |
| ... | ||||
| Note: Only some model parameters are shown. For more model information, please contact customer service400-8292-1018 | ||||
Powerful manufacturers, customized more matching
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!
-
1、Explosion-proof
It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
-
2、Anticorrosion
Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
-
3、cooling method
For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
-
4、Spare parts brand
Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
-
5、special conditions
Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
-
6、cloud service
Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
30 years of strength factory, technology and quality are the foundation of survival
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

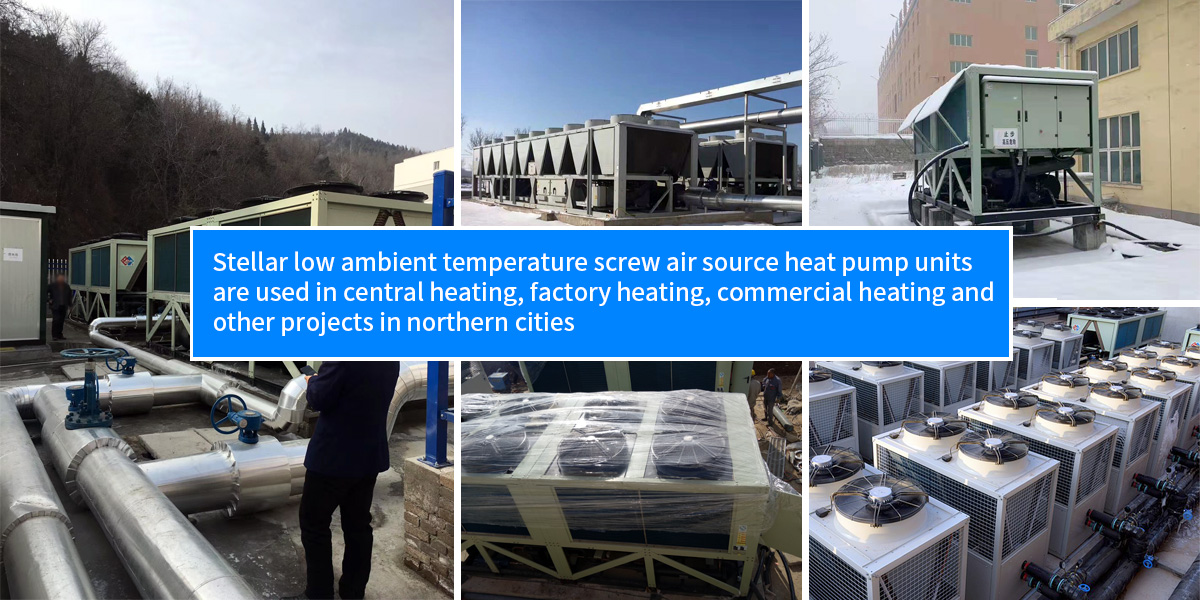

Serving global customers, cases covering all industries
