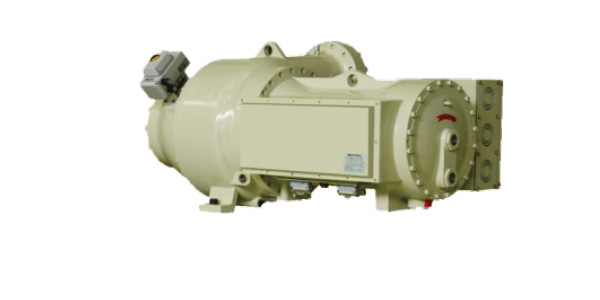

Two-stage centrifugal compressor, high efficiency, more stable

The two-stage centrifugal compressor is not easy to surge; the system economizer supplies air between the compressor stages, and the cooling capacity is increased by at least 10%.

Intelligently judge the surge area, adjust the speed and IGV in time, avoid the occurrence of surge, and make the operation more stable and safer.

Gear speed-increasing drive, the impeller volume is smaller, the motor starting torque is small, and the downtime is short.

The motor is integrated with the compressor, and the running noise is low, and there is no risk of leakage.

The motor is cooled by liquid refrigerant, with low operating temperature and high efficiency.

Use high-strength ball/roller bearings, not afraid of compressor emergency stop.

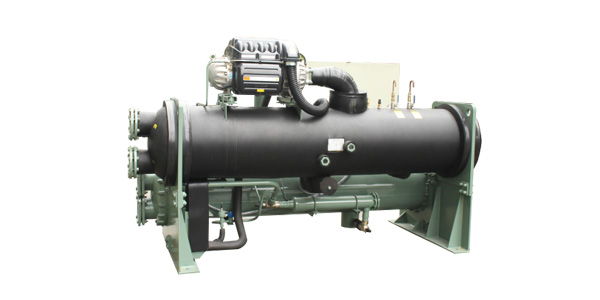

Water cooling centrifugal chiller DC inverter motor, high energy efficiency and energy saving

Perfect oil circuit system, safer and more reliable

Using an independent oil return system (ejection pump oil return), it can ensure timely oil return under any load conditions.

The unit has built-in oil cooler, which is cooled by refrigerant, which is safe and reliable.

The oil pump is built into the compressor oil sump, eliminating the risk of oil pump leakage.

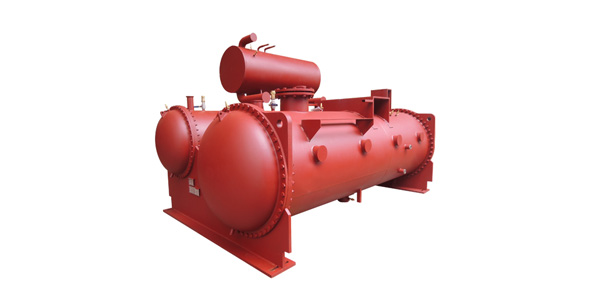

High-efficiency heat exchanger for water cooling centrifugal chiller with excellent performance

High energy efficiency heat exchanger with excellent performance

The use of self-developed and produced high-efficiency spray heat exchangers, and the use of precise liquid level control technology, ensures that the evaporator is always in a high-efficiency heat exchange state.

The condenser adopts droplet separation technology to ensure high energy efficiency and sufficient heat exchange of the condensing heat exchange tube.

COP value up to 6.3

Water cooling centrifugal chiller magnetic levitation oil-free technology, energy saving and noise reduction

With heat recovery device, free hot water

Using self-developed heat recovery device, the waste heat generated in the refrigeration process is recovered. While providing customers with cold water, a large amount of hot water can also be supplied free of charge.

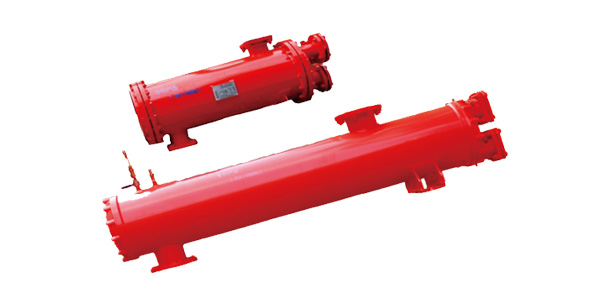

Water cooling centrifugal chiller condensing heat energy recovery, free and practical

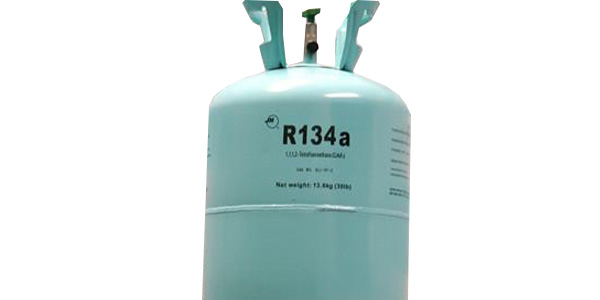

Environmentally friendly refrigerant with good overall performance

The mainstream environmentally friendly refrigerant R134a is used, which has good comprehensive performance, and the ozone depletion value (ODP) is 0.

Product parameters

model	input power	weight	Cooling capacity	Refrigerant
50STD-600W2	340kw	12000kg	2088kw	R134a
50STD-700W2	385kw	13000kg	2320kw	R134a
50STD-800W2	448kw	14000kg	2785kw	R134a
50STD-900W2	525kw	15000kg	3200kw	R134a
50STD-1000W2	582kw	16000kg	3550kw	R134a
50STD-1200W2	672kw	18000kg	4175kw	R134a
50STD-1300W2	732kw	19000kg	4570kw	R134a
50STD-1400W2	769kw	20000kg	4777kw	R134a
50STD-2000W2	1164kw	30000kg	7100kw	R134a
50STD-2800W2	1538kw	38500kg	9554kw	R134a
...
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
