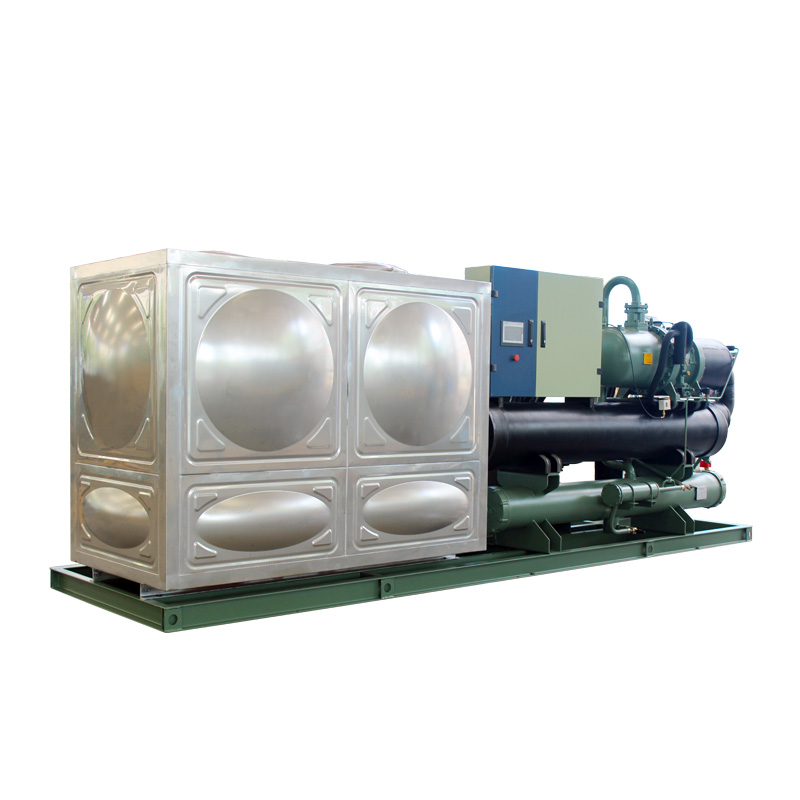

High precision chiller_H.Stars (Guangzhou)Refrigerating Equipment Group Ltd

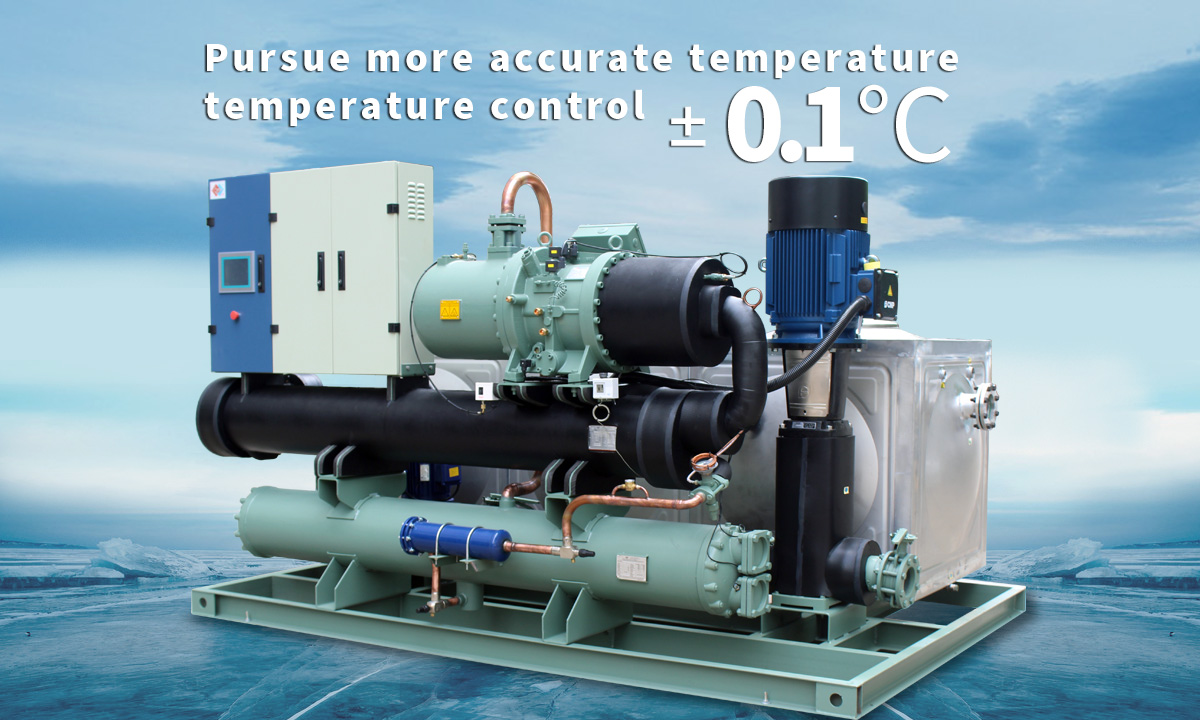

In pursuit of a more accurate temperature, the temperature control of the star's high-precision chiller is ±0.1°C

The water supply temperature range of the high-precision chiller is wide, and the water supply temperature is suitable for different needs

Water temperature for different needs

According to the needs of the experimental site, constant temperature water in the range of 5℃~50℃ can be provided.

High-precision chillers have high water output accuracy, often used in laboratories, etc.

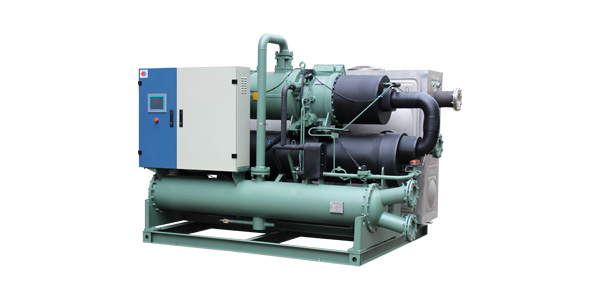

The unit has high water output accuracy

Designed for special scenarios such as high-end laboratories, the water temperature accuracy is ±0.1 degrees

Safe, reliable and durable

The special system design dedicated to high-precision water discharge has a variety of safety protection measures to ensure the safe operation of the unit.

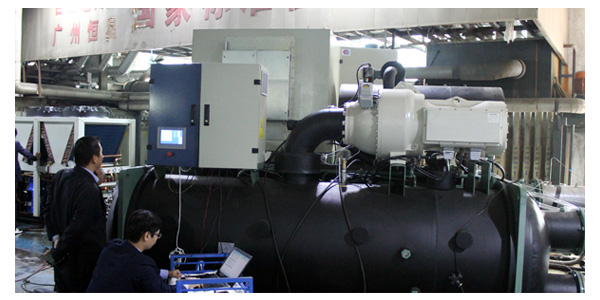

All units are fully tested by the safety inspection system before leaving the factory to ensure that the performance of the units meets the national standards.

High-precision chillers are easy to install and maintain, with reliable performance

Easy installation and maintenance

The unit has been charged with refrigerant and lubricating oil before leaving the factory, and the customer only needs to connect the inlet and outlet pipes and power supply to run. The control interface directly displays the fault content, which is convenient for timely understanding and troubleshooting.

Each component in the unit is considered for its replacement or clear convenience, and maintenance is very convenient.

Intelligent control of high-precision chillers, easy to operate

Intelligent control, simple operation

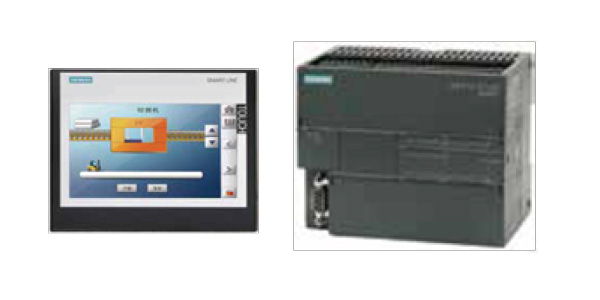

The unit adopts Siemens PLC control system, 10-inch full-color touch screen Chinese operation interface. The operation screen can be placed in the office and can be easily touched, or the ModBus RTU (485 serial port)/S7 communication (Ethernet port) protocol can be reserved as required, which is convenient and simple to operate.

Product parameters

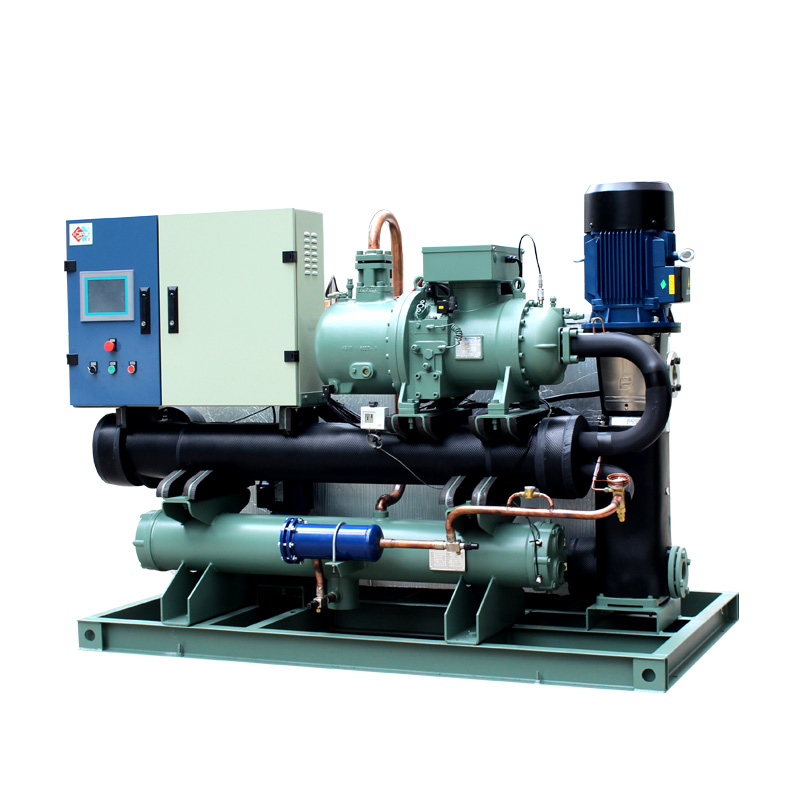

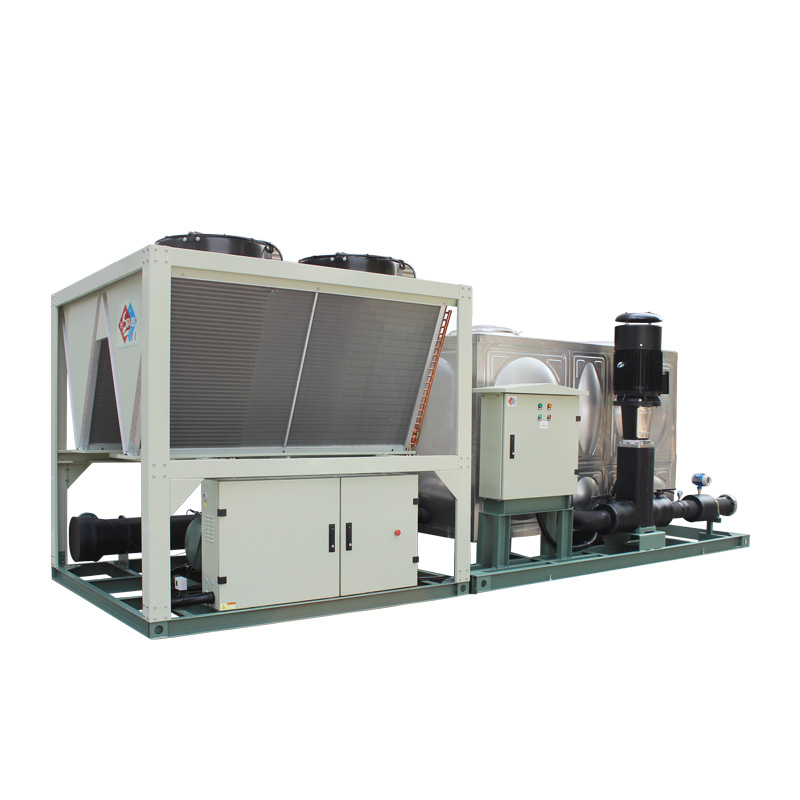

model	Cooling capacity	compressor input power	weight	cooling method	Refrigerant
40STD-120WYI4	112kw	23kw	880kg	water cooling	R134a
40STD-290WYI4	272kw	51kw	1220kg	water cooling	R134a
40STD-430WYI4	406kw	103kw	1620kg	water cooling	R134a
40STD-610WYI4	580kw	220.8kw	2140kg	water cooling	R134a
20STB-10AI4	33kw	8kw	48kg	air cooling	R22
20STB-15AI4	49kw	13kw	560kg	air cooling	R22
20STB-30AI4	98kw	26kw	980kg	air cooling	R22
20STB-45AI4	147kw	39kw	1280kg	air cooling	R22
...
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
