Water-cooled screw chiller_H.Stars (Guangzhou)Refrigerating Equipment Group Ltd

H.Star water cooling screw chiller mature technology, low failure rate, high user praise rate

Overall energy efficiency 6.0

It has the production capacity of main components, owns independent intellectual property rights, the system is perfectly matched, and the energy efficiency of the whole machine reaches 6.0.

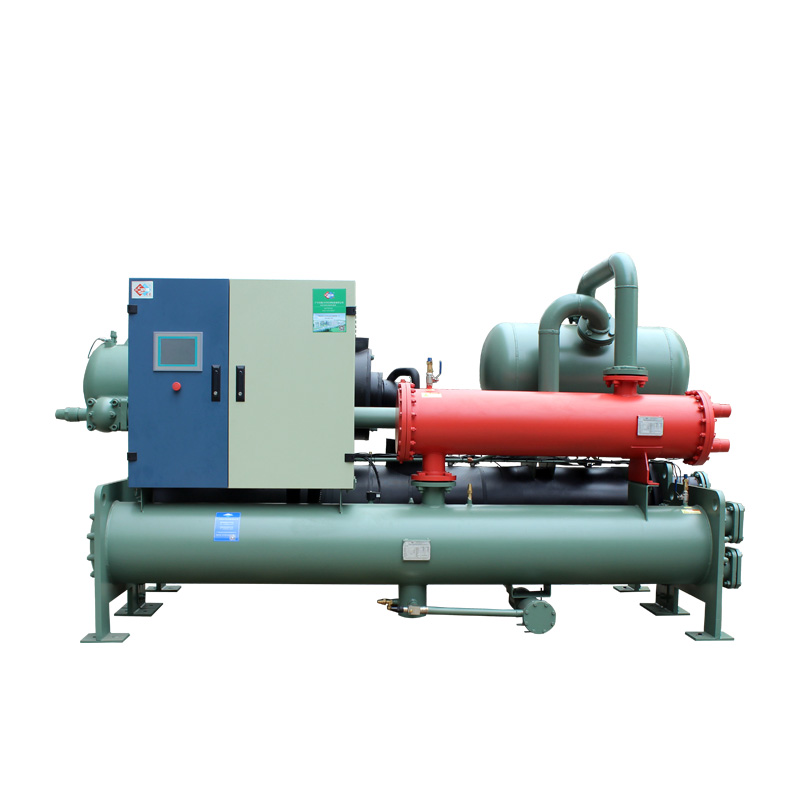

The unit can be equipped with a self-developed heat recovery device, the recoverable heat is more than 30% of the cooling capacity or full heat recovery is realized, and the hot water temperature can reach 70 °C. Heat recovery does not consume energy, and the overall efficiency of the unit can be increased by 5%.

Water cooling screw chillers are protected by multiple measures and operate reliably

Multiple measures to protect, reliable operation

The unit has 7 kinds of safety protection measures to ensure the normal operation of the unit.

The unit is available with single and double loop designs to meet the different choices of customers. When a single compressor of a dual-circuit configuration unit fails, the other compressor can still run normally without affecting the use of customers.

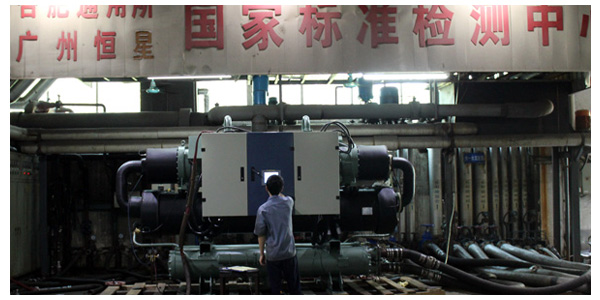

The unit has passed the safety inspection before leaving the factory.

The performance of the unit conforms to the enterprise standard.

The water cooling screw chiller is intelligently controlled and easy to manage

Intelligent control

The unit is controlled by a microcomputer, and the operation of the centralized management system is adopted.

The unit can be equipped with a remote management program, which can feedback system operation information and realize remote service.

The control interface directly displays the fault content, which is convenient for timely understanding and troubleshooting.

Easy to install

The unit has been filled with refrigerant and lubricating oil before leaving the factory. Customers only need to connect the inlet and outlet pipes and power supply to operate, and the installation is simple.

Product parameters

model	Cooling capacity	input power	weight	Refrigerant
40STD-F100WS4	103kw	22kw	1020kg	R22
40STD-F530WS4	532kw	100kw	3100kg	R22
40STD-F1060WS4	1064kw	195kw	6230kg	R22
40STD-F1880WD4	1886kw	344kw	9970kg	R22
40STD-F5220WT4	5346kw	939kw	20000kg	R22
40STD-MF100WS4	68kw	14kw	1020kg	R134a
40STD-MF530WS4	340kw	60kw	2880kg	R134a
40STD-MF1060WS4	719kw	121kw	5670kg	R134a
40STD-MF1880WS4	1230kw	212kw	9450kg	R134a
40STD-MF530WS4	3513kw	576kw	20000kg	R134a
...
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.

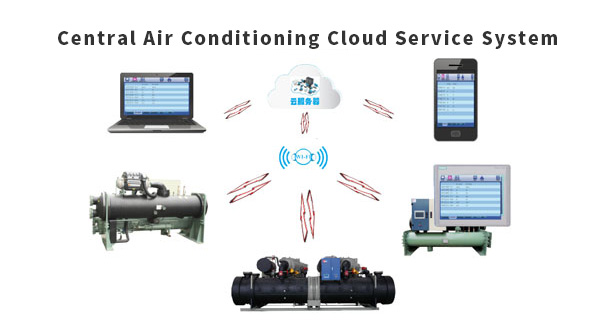

6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
