Low temperature
- Outlet temperature
- 0~ -35℃
- Refrigerant
- R22、R404a
- Cooling range
- 55kw~2439kw

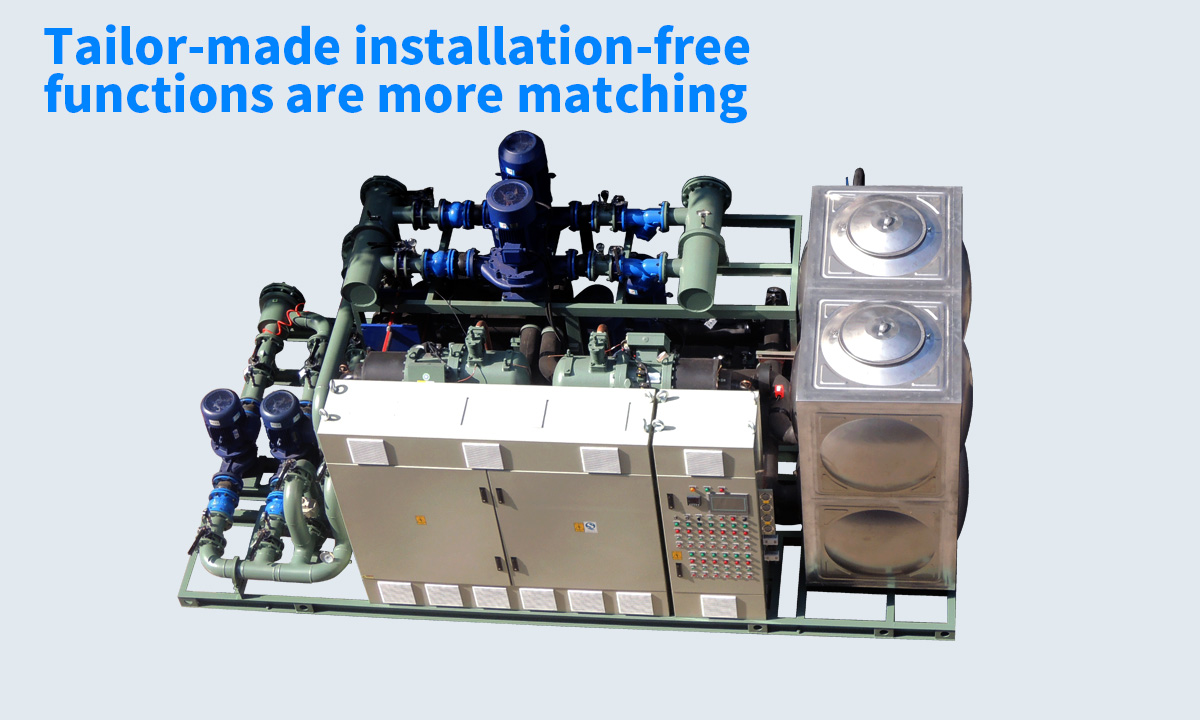

Exclusive customization, more matching
According to the process characteristics of different industries and different projects, the integrated industrial units are tailored for users.
Heat energy recovery (optional), efficiency improvement
The unit can be equipped with a heat recovery device independently developed by the factory. When the air conditioner is used, the heat recovered is more than 30% of the cooling capacity or full heat recovery is achieved. The high temperature of hot water can reach 70 °C. Heat recovery does not consume energy, and the overall efficiency of the unit can be increased by 5%.
Safe and reliable
The unit has 7 kinds of safety protection measures to ensure the normal operation of the unit. The unit is available with single and double loop designs to meet the different choices of customers.
When a single compressor of a dual-circuit configuration unit fails, the other compressor can still run normally without affecting the use of customers.

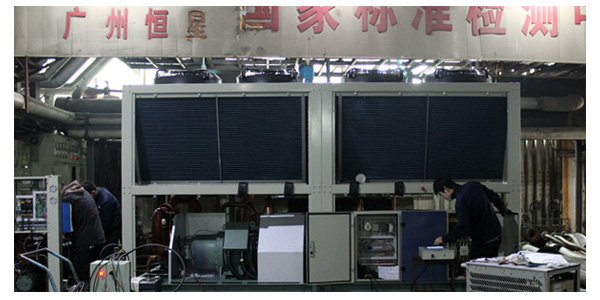

All units have passed 100% safety inspection series tests before leaving the factory to ensure that the performance of the units conforms to national standards.
Intelligent control
The unit is controlled by microcomputer and can be operated through a centralized management system. The unit can be equipped with a remote management program, which can feedback system operation information and realize remote service.
The control interface directly displays the fault content, which is convenient for timely understanding and troubleshooting.
Easy installation and maintenance
The chiller has been charged with refrigerant and lubricating oil before leaving the factory, and the customer only needs to connect the inlet and outlet pipes and power supply to run. The control interface directly displays the fault content, which is convenient for timely understanding and troubleshooting.
Product parameters
| model | Cooling capacity | compressor input power | weight | cooling method | Refrigerant |

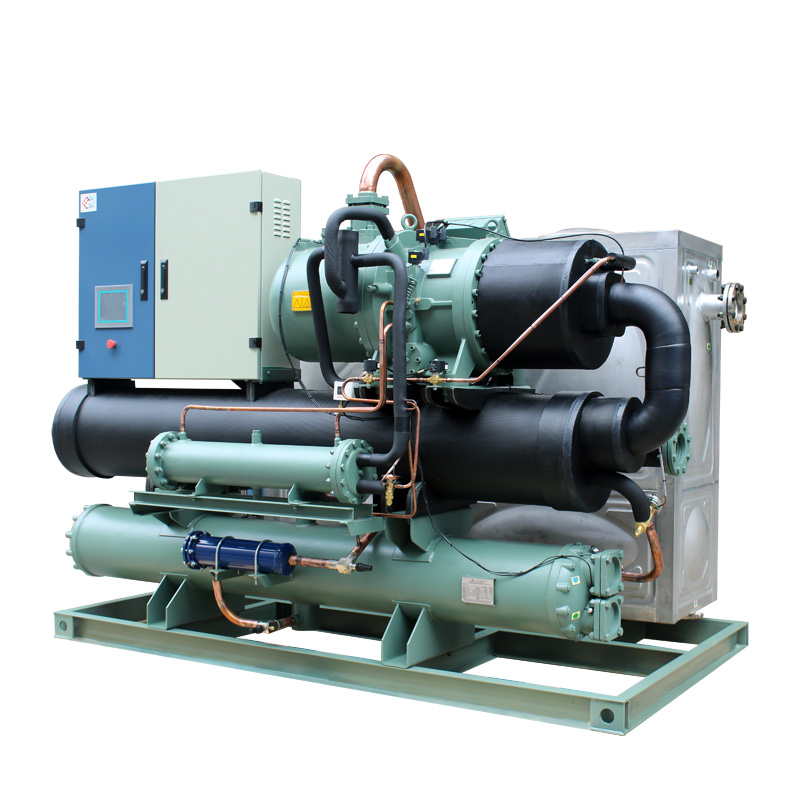

| 40STD-120WYI4 | 112kw | 23kw | 880kg | water cooling | R22 |
| 40STD-370WYI4 | 345kw | 63kw | 1510kg | water cooling | R22 |
| 40STD-610WYI4 | 580kw | 105kw | 2140kg | water cooling | R22 |
| 40STD-M120WYI4 | 75kw | 15kw | 1120kg | water cooling | R134a |
| 40STD-M370WYI4 | 234kw | 40kw | 1440kg | water cooling | R134a |
| 40STD-M610WYI4 | 373kw | 63kw | 400kg | water cooling | R134a |

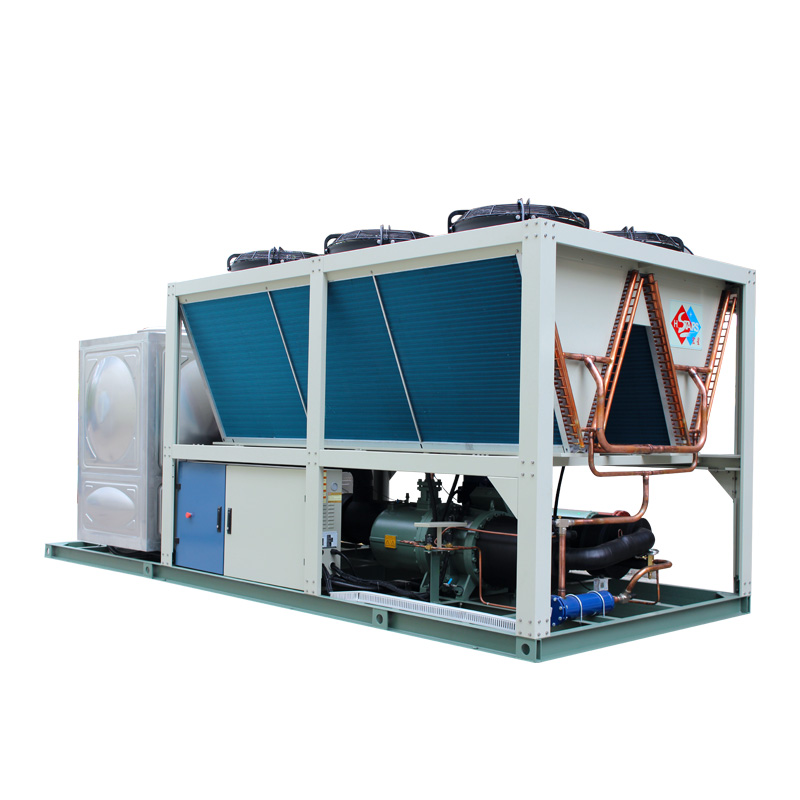

| 40STE-140AYI4 | 136kw | 37kw | 1740kg | air cooling | R22 |
| 40STE-450AYI4 | 417kw | 106kw | 4740kg | air cooling | R22 |
| 40STE-M140AYI4 | 92kw | 23kw | 1740kg | air cooling | R134a |
| 40STE-M450AYI4 | 288kw | 68kw | 4740kg | air cooling | R134a |
| … | |||||
| Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn | |||||
Powerful manufacturers, customized more matching
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!
-

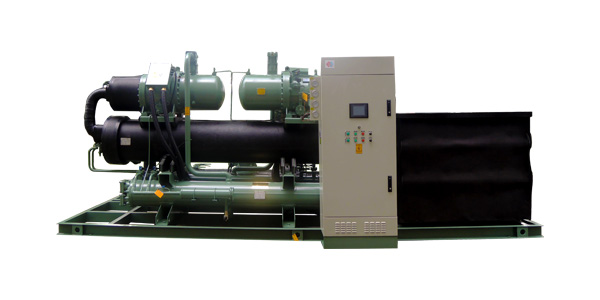

1、Explosion-proof
It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
-

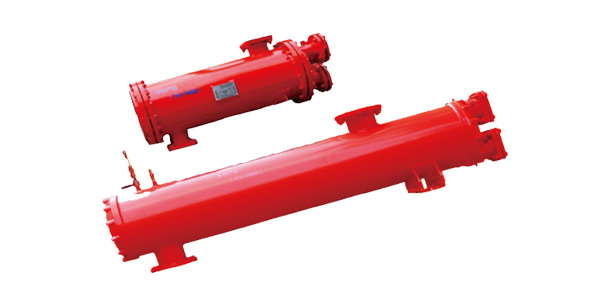

2、Anticorrosion
Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
-

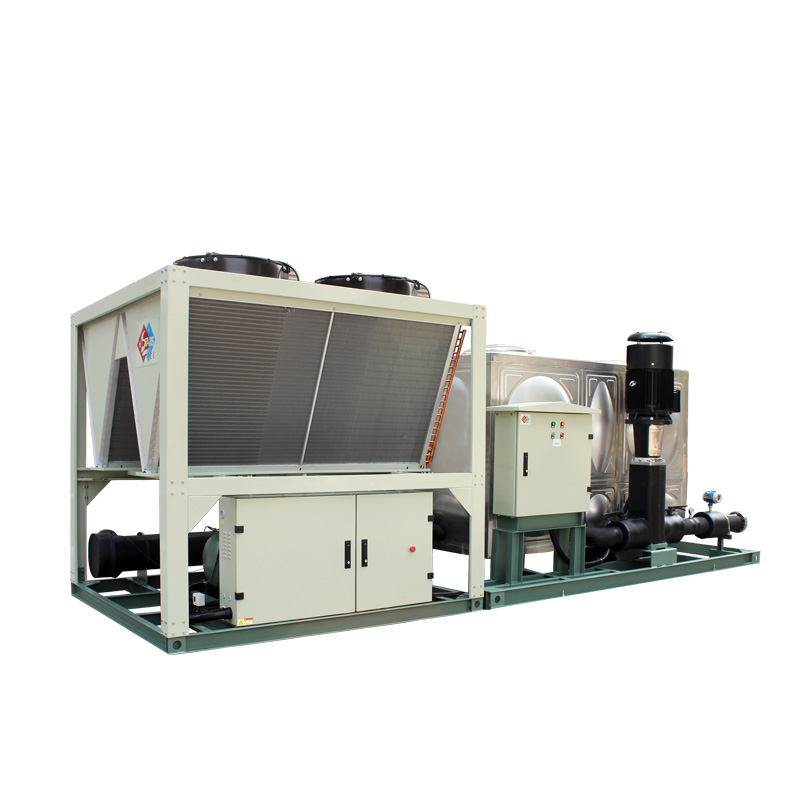

3、cooling method
For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
-
4、Spare parts brand
Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
-

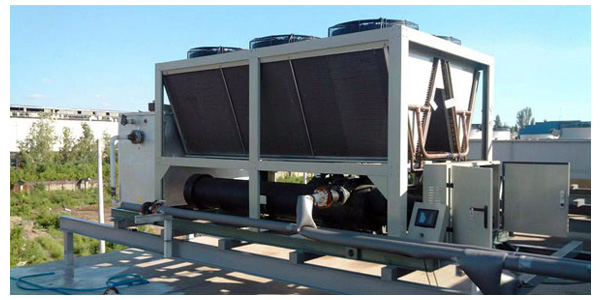

5、special conditions
Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
-

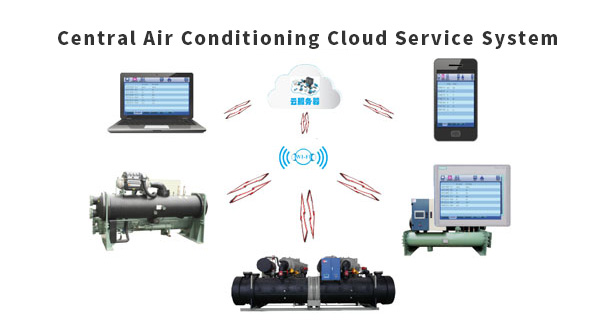

6、cloud service
Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
30 years of strength factory, technology and quality are the foundation of survival
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

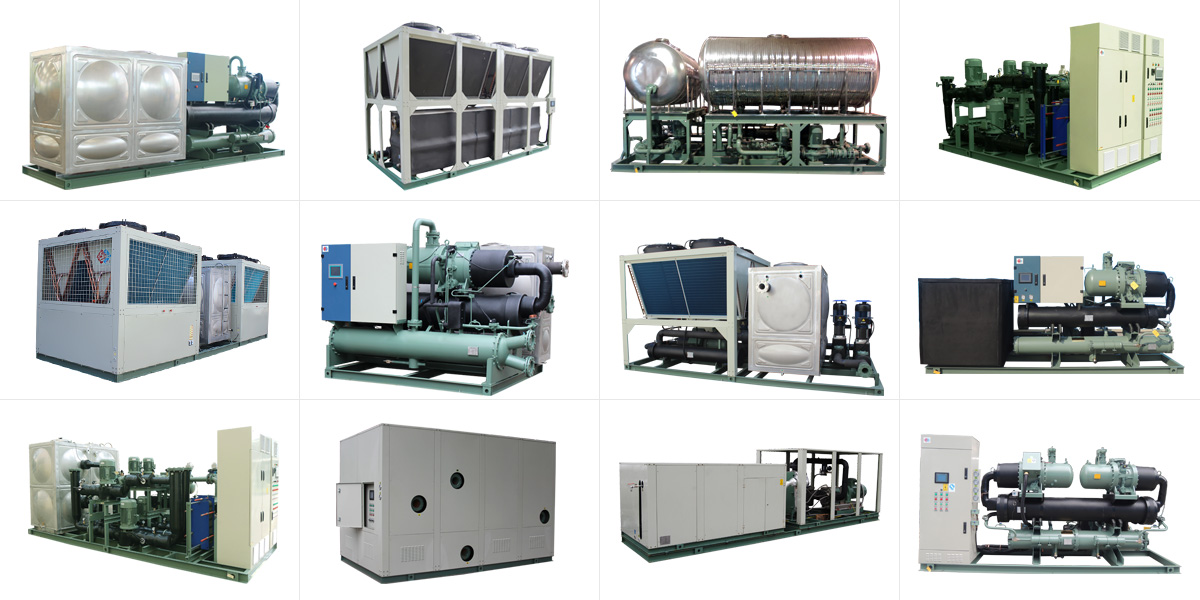

Serving global customers, cases covering all industries
