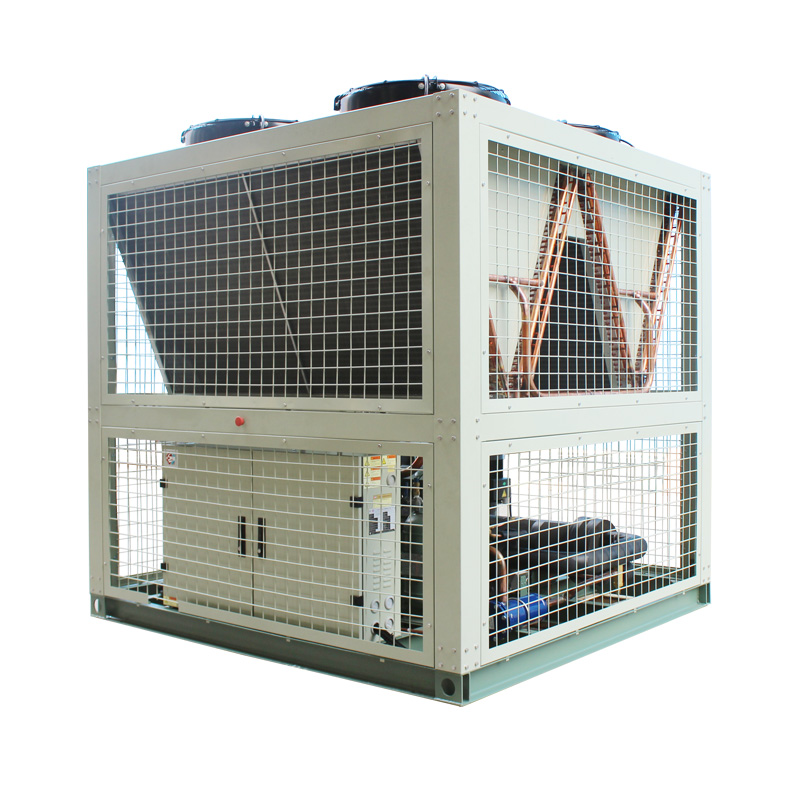

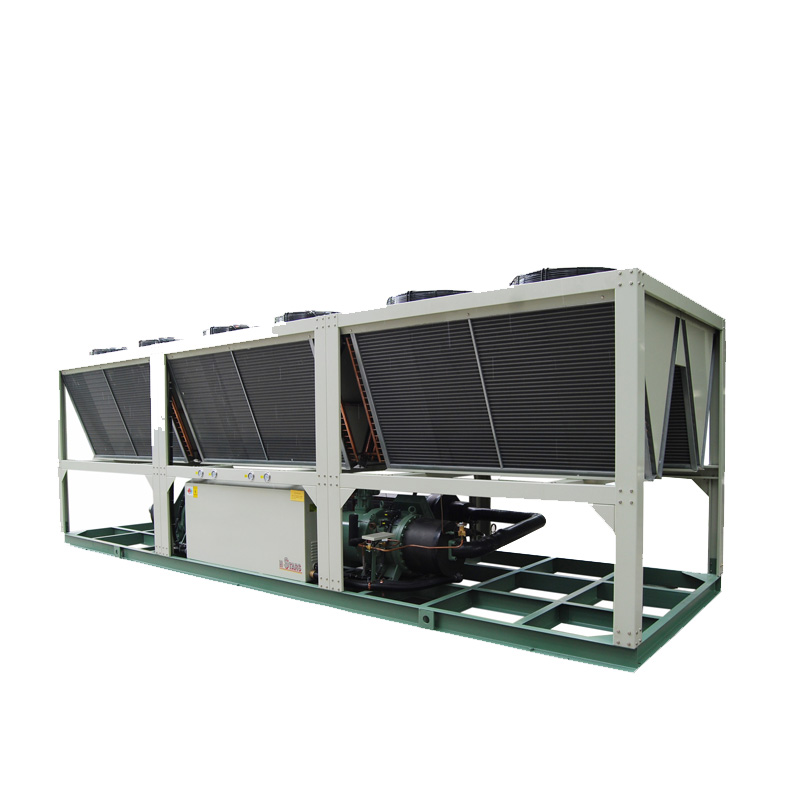

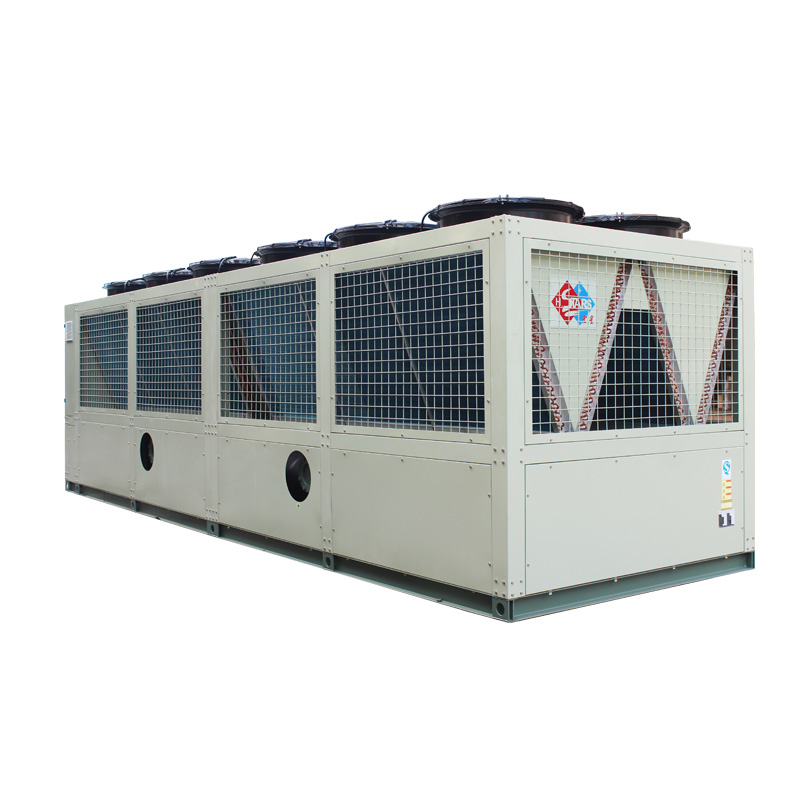

Air-cooled screw chiller_H.Stars (Guangzhou)Refrigerating Equipment Group Ltd

H.Stars air cooling screw chiller mature technology, low failure rate, high user praise rate

The overall energy efficiency of the air cooling screw chiller is 6.0

Overall energy efficiency 6.0

It has the production capacity of main components, owns independent intellectual property rights, the system is perfectly matched, and the energy efficiency of the whole machine reaches 6.0.

The unit can be equipped with a self-developed heat recovery device, the recoverable heat is more than 30% of the cooling capacity or full heat recovery is realized, and the hot water temperature can reach 70 °C. Heat recovery does not consume energy, and the overall efficiency of the unit can be increased by 5%.

Air cooling screw chillers are protected by multiple measures and operate reliably

Multiple measures to protect, reliable operation

The unit has 7 kinds of safety protection measures to ensure the normal operation of the unit.

The unit is available with single and double loop designs to meet the different choices of customers. When a single compressor of a dual-circuit configuration unit fails, the other compressor can still run normally without affecting the use of customers.

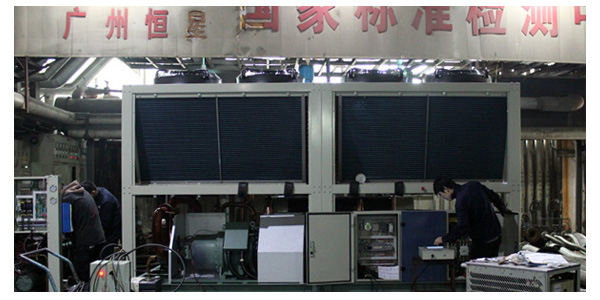

The unit has passed the safety inspection before leaving the factory.

The performance of the unit conforms to the enterprise standard.

Intelligent control

The unit is controlled by a microcomputer, and the operation of the centralized management system is adopted.

The unit can be equipped with a remote management program, which can feedback system operation information and realize remote service.

The control interface directly displays the fault content, which is convenient for timely understanding and troubleshooting.

Easy to install

The unit has been filled with refrigerant and lubricating oil before leaving the factory. Customers only need to connect the inlet and outlet pipes and power supply to operate, and the installation is simple.

Product parameters

model	input power	weight	Cooling capacity	Refrigerant
40STE-110AS4	36kw	1160kg	113kw	R22
40STE-240AS4	74kw	2670kg	252kw	R22
40STE-380AS4	120kw	4430kg	397kw	R22
40STE-560AS4	172kw	5500kg	594kw	R22
40STE-1000AS4	300kw	7950kg	1087kw	R22
40STE-M110AS4	23kw	1160kg	75kw	R134a
40STE-M240AS4	56kw	2670kg	169kw	R134a
40STE-M380AS4	83kw	4430kg	277kw	R134a
40STE-M560AS4	112kw	5500kg	338kw	R134a
40STE-M1000AS4	194kw	7950kg	718kw	R134a
...
Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn

Powerful manufacturers, customized more matching

To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

1、Explosion-proof

It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
2、Anticorrosion

Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
3、cooling method

For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
4、Spare parts brand

Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
5、special conditions

Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.

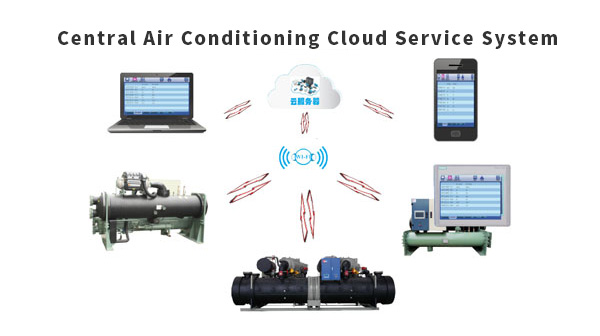

6、cloud service

Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
