Industrial integ
- Outlet temperature
- 5~20℃
- Refrigerant
- R22、R134a
- Cooling range
- 30kw~580kw
Independent production of core components to ensure product reliability
It has the production capacity of main components, owns independent intellectual property rights, the system is perfectly matched, and the energy efficiency of the whole machine reaches 6.0.
Multiple measures to protect, reliable operation
There are 7 kinds of safety protection measures to ensure the normal operation of the unit; the unit is equipped with single-circuit and double-circuit designs to meet the different choices of customers. When a single compressor of the double-circuit configuration unit fails, the other compressor can still operate normally. , does not affect customer use.
Intelligent control
The unit is controlled by a microcomputer and can be operated through a centralized management system; a remote management program can be selected to feedback system operation information and realize remote service.
Easy installation and maintenance
The unit has been filled with refrigerant and lubricating oil before leaving the factory, and the customer only needs to connect the inlet and outlet pipes and power supply to run.
Product parameters
| model | input power | weight | Cooling capacity | Refrigerant |
| 40STD-120WSI4 | 23kw | 880kg | 112kw | R22 |
| 40STD-700WSI4 | 121kw | 2270kg | 667kw | R22 |
| 40STD-1490WSI4 | 230kw | 3740kg | 1302kw | R22 |
| 40STD-1400WDI4 | 241kw | 3950kg | 1334kw | R22 |
| 40STD-6000WDI4 | 998kw | 11100kg | 5801kw | R22 |
| 40STD-M120WSI4 | 15kw | 880kg | 75kw | R134a |
| 40STD-M700WSI4 | 74kw | 2270kg | 440kw | R134a |
| 40STD-M2000WSI4 | 202kw | 4300kg | 1286kw | R134a |
| 40STD-M1400WDI4 | 147kw | 3950kg | 870kw | R134a |
| 40STD-M6000WDI4 | 605kw | 11100kg | 3857kw | R134a |
| ... | ||||
| Note: Only some model parameters are shown. For more model information, please contact customer serviceEmail:maychow@hstars.com.cn | ||||
Powerful manufacturers, customized more matching
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!
-
1、Explosion-proof
It is aimed at the explosion-proof needs of special places with flammable and explosive in the petroleum, chemical industry, coal mining industry and so on. The unit can be specially designed according to different explosion-proof grades, and the explosion-proof grade can reach: Ex dIIBT4. And provide explosion-proof certificate.
-
2、Anticorrosion
Provide professional solutions for anti-corrosion media such as sewage source, sea water source, waste gas, and waste water in the application site.
-
3、cooling method
For different cases, provide professional solutions, energy saving, high energy efficiency, environmental protection and durability.
-
4、Spare parts brand
Flexible configuration of spare parts brands, professional technology, modular replacement, and strict control of details.
-
5、special conditions
Special chillers with ultra-high temperature effluent and ultra-low temperature effluent can be specially designed according to the place where the equipment is used, the scene of application, and the process requirements.
-

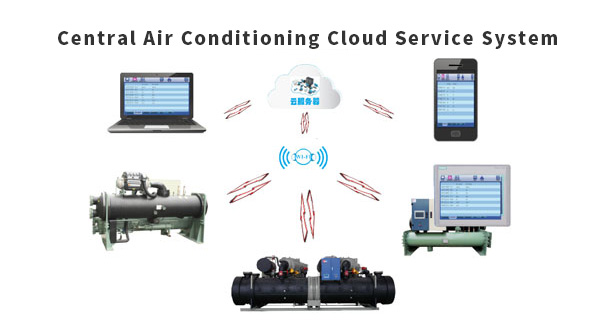

6、cloud service
Remote monitoring, automatic data integration, safe and reliable, intelligent operation, cost saving, convenient maintenance.
30 years of strength factory, technology and quality are the foundation of survival
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!

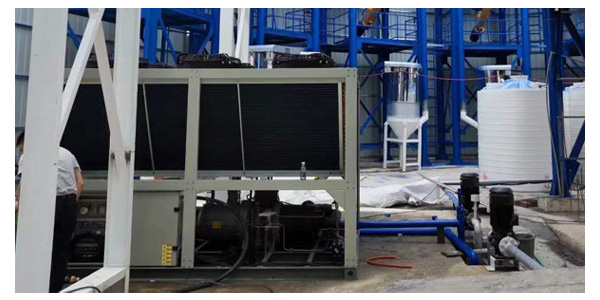

Serving global customers, cases covering all industries
To meet various parameter requirements, we have gathered more than 20 senior R&D engineers in the industry to provide customized services for different products of customers!
